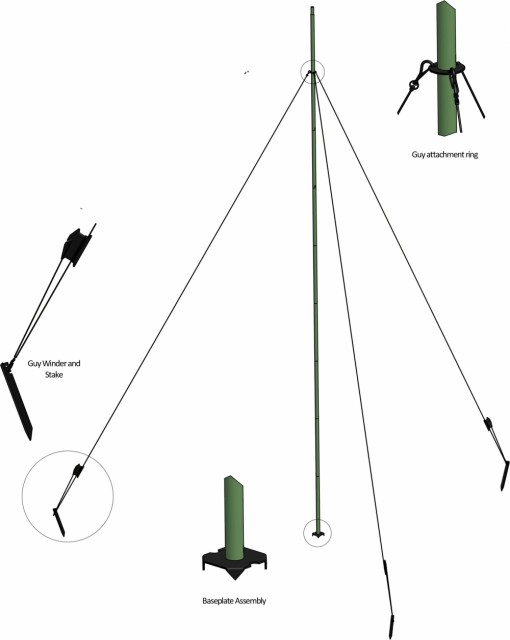

The AMX54 is a 5.4 metre (18 ft) tactical lightweight composite sectional mast designed to be carried and deployed by a single person. The mast can be erected in a matter of minutes and can support lightweight antennas and sensors.
- 9 lightweight composite GRP sections, 0.6m (24 in) long. Tube outside diameter is 33mm (1.3 in).
- Single level, three way guys
- Packs down into a single, easy to carry case
- Quickly and easily deployed by a single person.
- Maintenance free due to its composite glass fibre construction.
- Highly resistant to corrosion. Suitable for marine or coastal environments.
Specification
|
Mast sections
|
9 sections, 0.6m (24 in) length, GRP composite. Polyurethane lacquer, olive drab finish
|
|
Top interface
|
Ø24mm (0.95 in) socket
|
|
Guys
|
Single level, 3-way guying. 3mm braided line on winder with adjustable lock and hooks each end
|
|
Guy pegs
|
3x aluminium powder coated
|
|
Carrying bag
|
Coated nylon. Separate pocket for accessories
|
|
Base support
|
Aluminium plate with ball for easy erection
|
|
Top load (maximum) *
|
3 kg (6.6lbs)
|
|
Total kit weight
|
4.7 kg (10.5lbs)
|
|
Bag dimensions
|
800 x 220 x 200 mm (31.5 x 8.7 x 7.9 ins)
|
|
Wind speed (maximum) *
|
130 km/h (80 mph)
|
|
Temperature range:
|
-55 °C, +71 °C; -67 °F, +160 °F
|

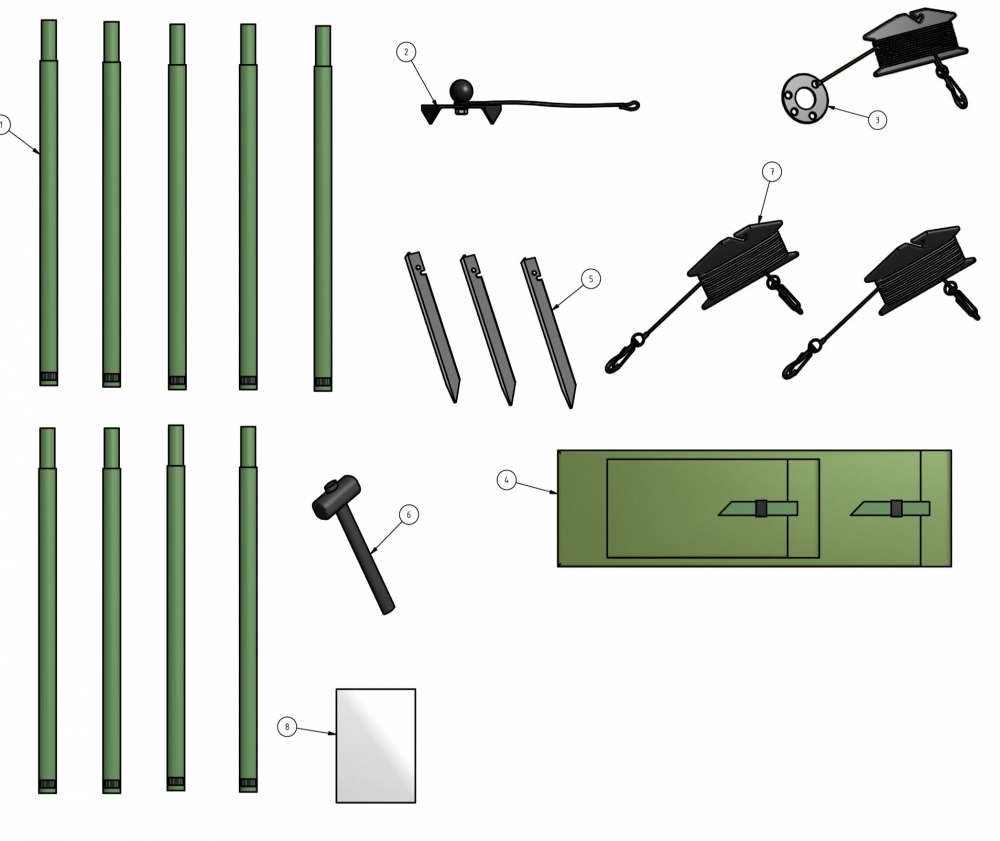

Standard Kit List
|
Part
|
Item
|
Qty
|
Dimension / Weights
|
|
Carrying bag
|
4
|
1
|
800 x 220 x 220 mm / 0.5 kg (31.5 x 8.7 x 7.9 ins) / (1.1 lbs)
|
|
Mast sections
|
1
|
9
|
2.9 kg (6.4 lbs)
|
|
Guy rope with winder
|
7
|
2
|
0.3 kg (0.7 lbs)
|
|
Guy rope with ring
|
3
|
1
|
0.4 kg (0.9 lbs)
|
|
Guy pegs
|
5
|
3
|
0.4 kg (0.9 lbs)
|
|
Hammer
|
6
|
1
|
0.45 kg (1 lb)
|
|
Baseplate
|
2
|
1
|
0.15 kg (0.3 lbs)
|

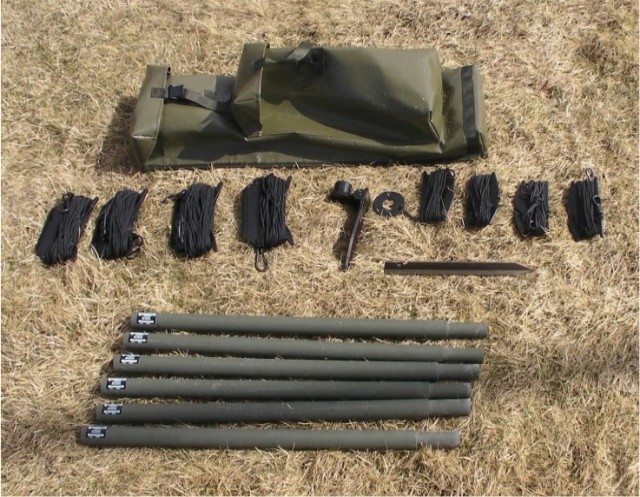

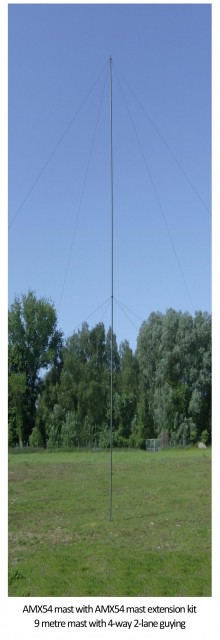

AMX54 Mast Extension Kit
An optional mast extension kit is available to extend the height of the AMX54 up to 9 metres (29.5ft). The kit contains six composite GRP mast sections identical to the standard AMX54 mast sections.
The kit also contains the additional guys to convert the mast from three way single level to four way two level guying. The kit is available with either conductive or non-conductive upperguys.
Conductive guys should be used with a Comrod groundspike antenna or monopole antenna. At the 9 meter height the maximum top load weight is 1kg *
Kit List
|
Part
|
Conductive
|
Non-Conductive
|
Dimension / Weights
|
|
|
Qty
|
Qty
|
|
|
Carrying bag
|
1
|
800 x 220 x 220 mm / 0.5 kg
|
1
|
|
Mast sections
|
6
|
2.9 kg (6.4 lbs)
|
6
|
|
Upper guy rope with winder (conductive)
|
4
|
|
0.4 kg (0.9 lbs)
|
|
Upper guy rope with winder (non-conductive)
|
|
4
|
0.4 kg (0.9 lbs)
|
|
Lower guy rope with winder
|
4
|
0.3 kg (0.7 lbs)
|
1
|
|
Guy ring 4 hole
|
1
|
0.4 kg (0.9 lbs)
|
1
|
|
Guy peg
|
1
|
0.4 kg (0.9 lbs)
|
1
|
|
Baseplate (hinged)
|
1
|
0.3 kg (0.7 lbs)
|
1
|
