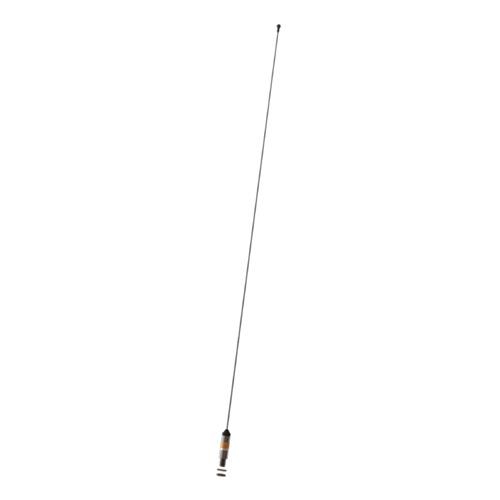

Baseantenne Scan VHF23U 141-179 MHz

Lettvektsantenne, frekvens kan justeres av kunde, slank konisk design i rustfritt stål for lav vindbelastning

Ta kontakt via skjemaet under for pris

På lager
Ønskeliste
Artikkelnr.:
40430
Forespør et pristilbud for dette produktet:

  • Produktinfo
  • Produktanmeldelser (0)

Electrical specifications

FREQUENCY: 141 - 179 MHz (Tunable within these frequencies. Cutting table included)

BANDWIDTH: 6.5 MHz

ANTENNA TYPE: Full 1/2 λ dipole - no groundplane needed

IMPEDANCE: 50 ohm

VSWR: < 1.5:1

POLARISATION: Vertical

GAIN: 3 dB (Marine), 0 dBd, 2.1 dBi

RADIATION PATTERN: Omni-directional

MAX. INPUT POWER. 150 W

Mechanical specifications

COLOR: Polished stainless steel and chrome

LENGTH: Max. 1150 mm (Depending on frequency)

WEIGHT: Max. 150 g (Depending on frequency)

MOUNTING PLACE: On deck, rail or mast depending on bracket type

MATERIALS: Stainless steel, POM and chrome plated solid brass

OPERATING TEMPERATURE: -55C to +70C (IEC 60068-2-1, IEC 60068-2-2)

CONNECTOR: UHF-female

CABLE: No cable supplied

INGRESS PROTECTION: IP66

SERIAL NO.: On product label
